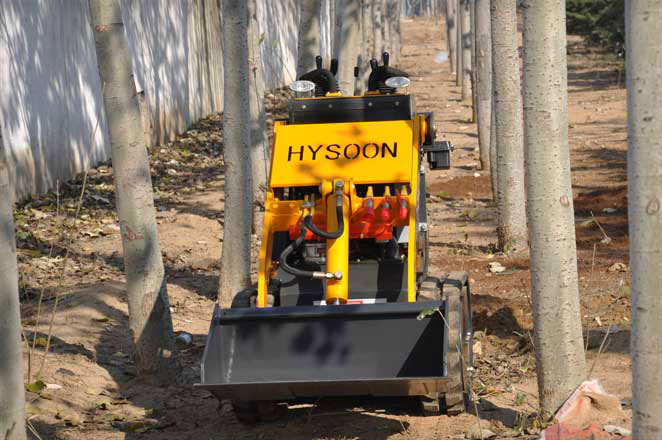

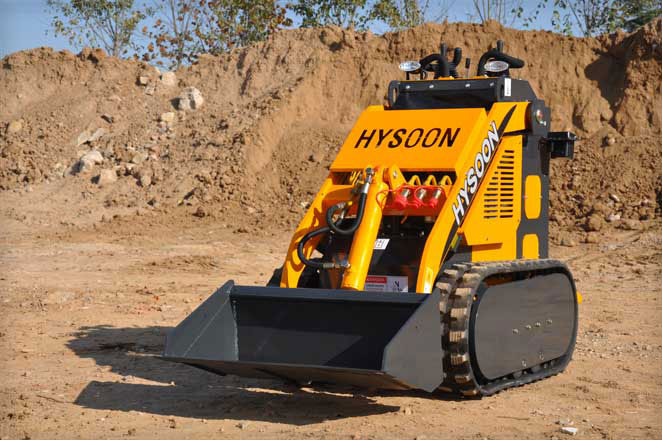

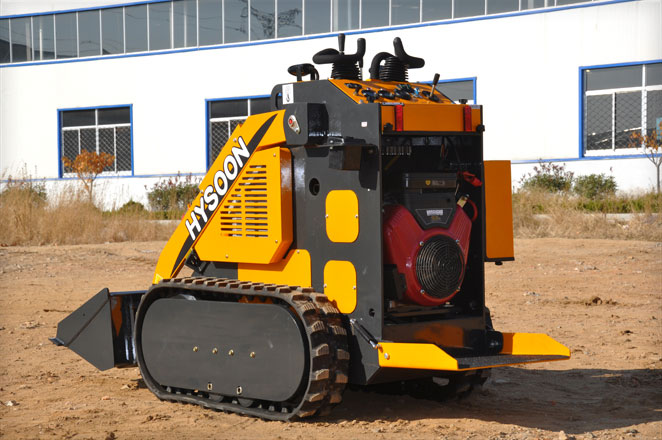

HY280 mini skid steer loader
The total machine width of HY280 is only 883mm allowing more versatility to work in smaller work spaces, in particular fitting through gates, doorways and down the sides of housing.
The machine has been designed with a large 37 ltr fuel tank, allowing for a continuous 6 hours’work.
- SPECIFICATION
- STANDARD FEATURS
- DOWNLOAD
|
Engine Brand |
USA Briggs&Stratton engine |
|
Engine power |
Petrol 23HP |
|
Rotating speed |
3600rpm |
|
Noise |
≤95 db |
|
Hydraulic pressure |
17 mpa |
|
Cylinder raise time |
4.27s |
|
Cylinder dump time |
1.34s |
|
Cylinder lower time |
3.31s |
|
Loading weight |
165kg |
|
Bucket capacity |
0.12CBM |
|
Max lifting power |
375kg |
|
Speed |
0-5.5 Km/h |
|

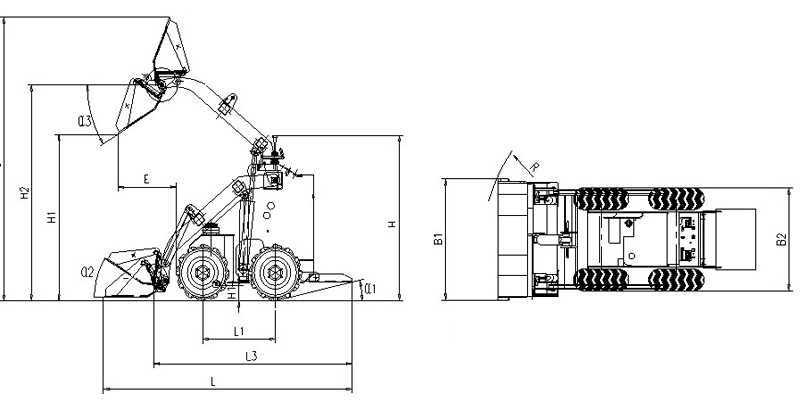

Max working height （H3） |
2065mm |
|
Max pin height （H2） |
1803 mm |
|
Max discharge height （H1） |
1386 mm |
|
The highest unload distance（E） |
471mm |
|
Max angle of unloading（α3） |
32° |
|
Retracting angle （α2） |
33° |
|
Angle of departure （α1） |
18° |
|
Total height（H） |
1309mm |
|
The height from the ground（H1） |
123mm |
|
wheelbase（L1） |
690 mm |
|
No bucket height（L3） |
1778 mm |
|
Total width （B2） |
800 mm |
|
Bucket width（B1） |
820 mm |
|
Total length （L）（with bucket ） |
2210 mm |
|
Turning radius (R) |
1236mm |
• Tyre:With Pneumatic tire
• Motor: cycloid Motor
• Hydraulics Pumps:Gear Pump
• Bucket:Plain
• Size(length*width*height): 3630*1200*2660mm
• Bucket capacity:0.3cbm/1000kg
• Operating weight:1100kg
